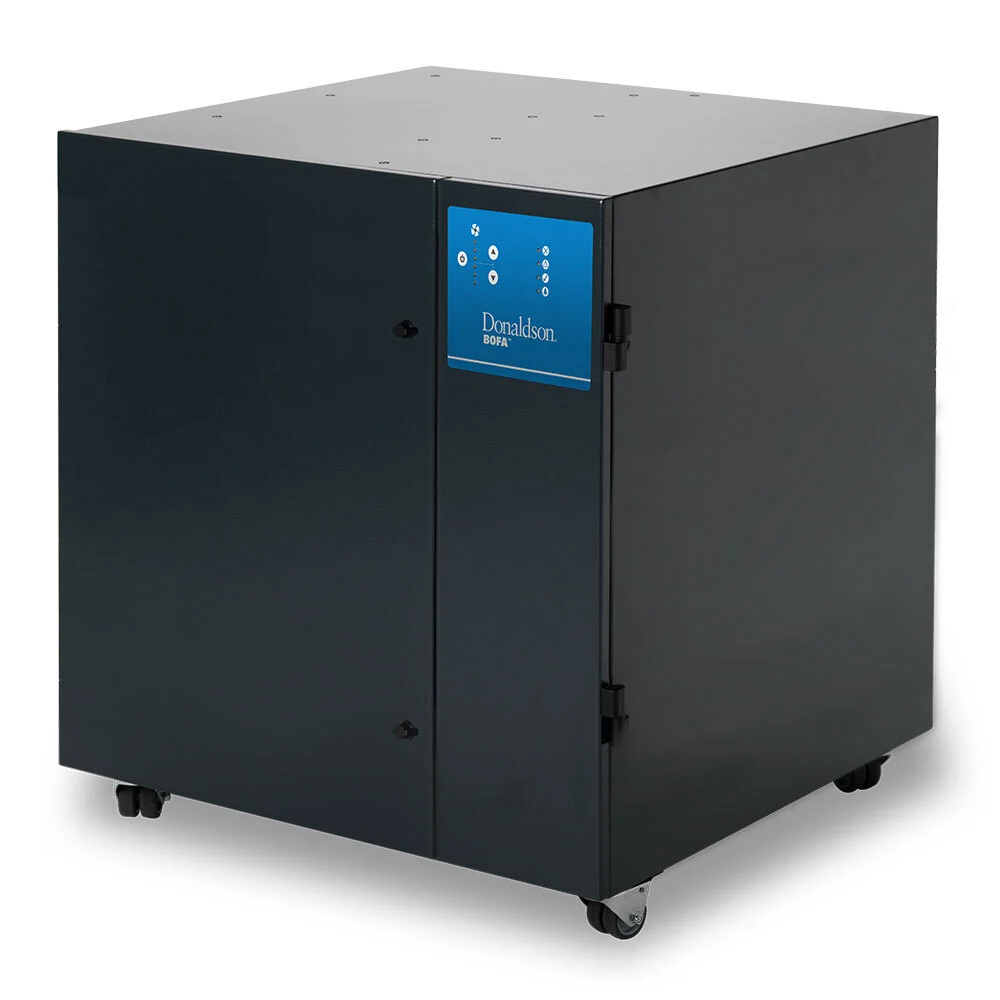

Suitable for a range of lasers, the AD Base 1 Oracle extraction system combines a DeepPleat DUO pre-filter and auto-voltage blower in a compact base system.
BOFA’s easi-seal filter location helps to make filter change quick and easy.
As with all our Base systems, this unit has the option of an onboard compressor for a compact installation.
Approvals: UKCA and CE
Key features:
• Reverse flow filter technology
• Automatic flow control
• Auto-sensing voltage (100-230v) for global use
• DeepPleat DUO pre-filter
• Advanced carbon filter technology
• HEPA and gas combined filter
• ‘Easi-seal’ filter location
• Small footprint
• Low noise level
• Optional VOC (volatile organic compound) gas sensor
• Optional onboard compressor
• Optional remote stop/start interface
• Optional filter change/system fail signal
Dimensions 31.10 x 28.94 x 29.13”
Weight 189 lbs
Airflow / Pressure 206 cfm / 96 mbar
Electrical data 115-230 V 1 ph50/60 Hz
Full load current: 12.5 amps / 1.1 kw
Noise level (at typical operating speed) 64 dBA
Cabinet construction Powder-coated mild steel
