Pegasus 17" A2 - UV Printer
Have one to sell?
ConditionNew
New

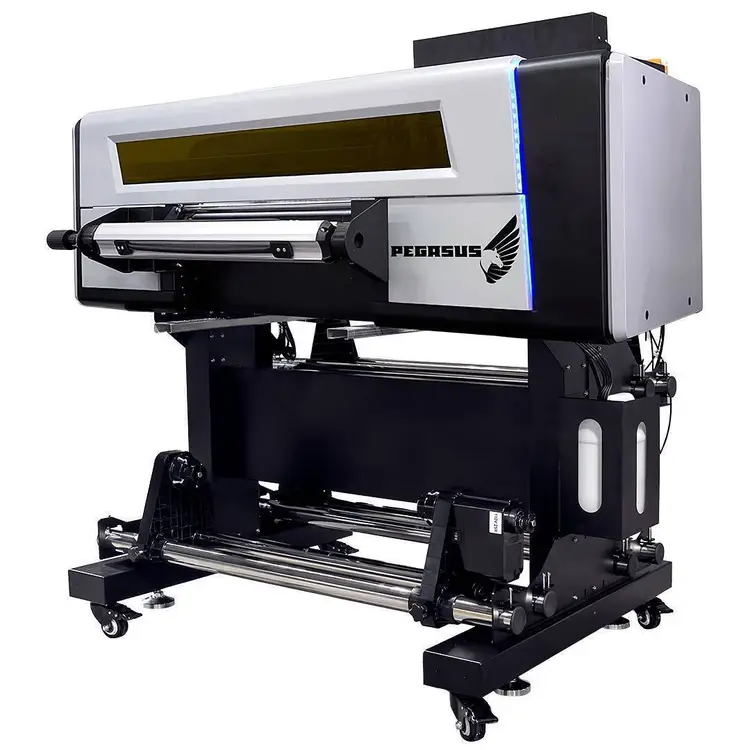

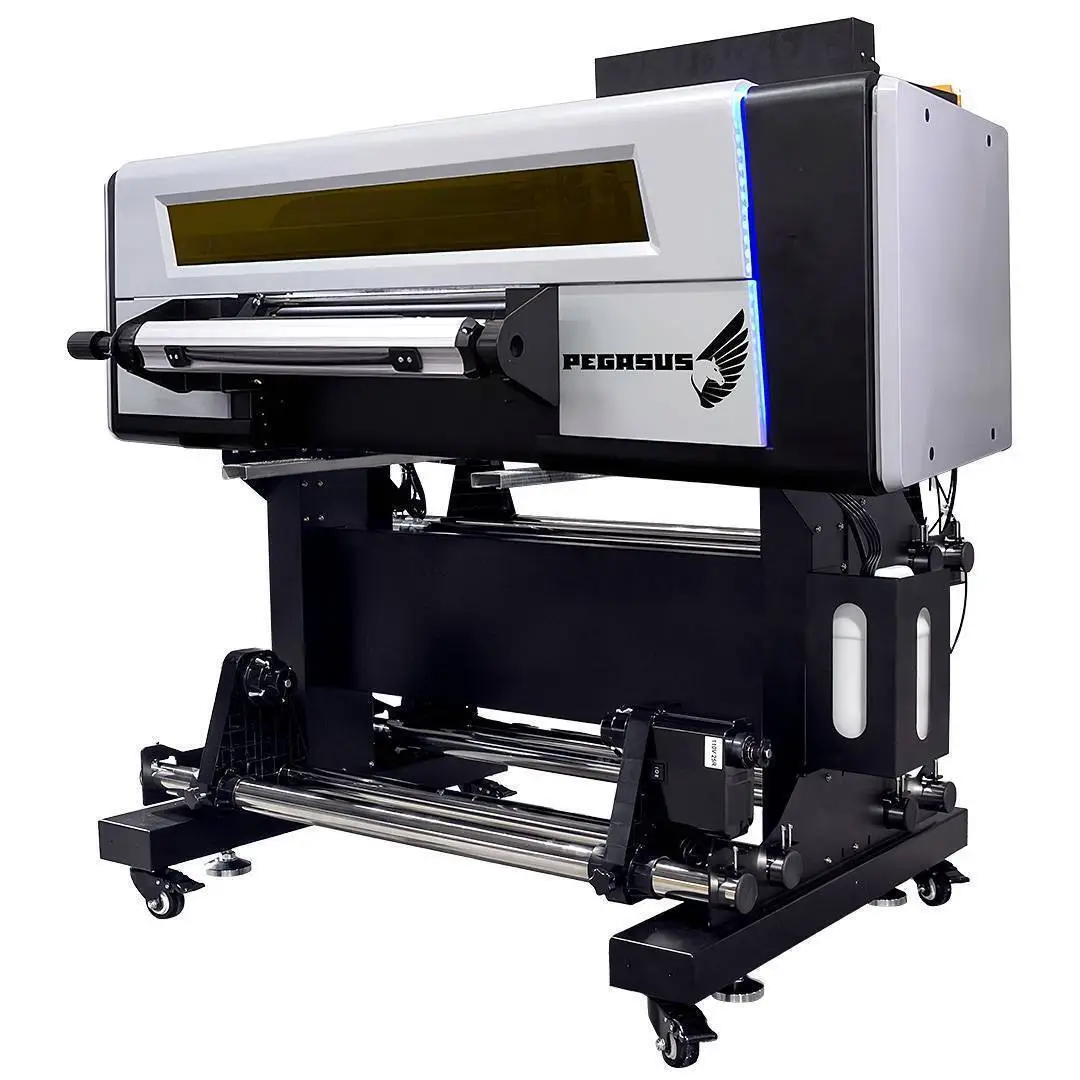

The Pegasus 17-Inch UV DTF Printer is an innovative piece of equipment that uses Ultra Violet light to print directly to a film transfer that can be applied to virtually any hard surface.
Key Features:
• 6 Color Expanded Gamut
• Built in Laminator and UV Curing Lamps
• A2 Size for compact but powerful footprint
• Ease of Operation due to Aqueous based UV inks
Equipped with state-of-the-art UV printing technology, the Pegasus opens up a world of possibilities for your printing needs. The UV ink system delivers vibrant, fade-resistant colors that pop off the page, making your designs stand out with a captivating brilliance. Say goodbye to traditional printing limitations as the Pegasus enables you to print and transfer to a wide range of hard substrates.
1. Ultra Violet Direct to Film (UV DTF) Printing: The Pegasus 17-Inch UV DTF Printer allows direct printing
2. UV LED Technology: Utilizing UV LED curing technology, this printer ensures fast drying times and enhanced durability of prints. UV LED curing also enables printing on a wide range of materials, including heat-sensitive hard substrates, without causing any damage.
3. A2 Format Printing: With a 17-inch print width, the Pegasus printer offers an ideal print area for all your favorite substrates
4. 6 Color Printing: The TX800 print heads within this unit have 6 channels which allow expanded gamut. Additional color spectrum outside of CMYK are Light Cyan and Light Magenta. Vibrant designs pop off the page even more!
What: Ultra Violet Direct To Film Turnkey System “Pegasus”
Print Heads: Epson TX800 <3>
Print Modes: 4pass / 6 pass / 8 pass <30+ SF/Hr on Production 8 Pass>
Arrangement: Cyan, Light Cyan, Magenta, Light Magenta, Yellow, Black, White, Varnish (1CMYK + 1W + 1V)
Roll Media Width: 17” (42 CM)
Print Driver: Print EXP
Rip: Flexi 22
Recommended Footprint: 8’x6’
Package: All in 1 System with Laminator, No Duster Needed
Installation: Remote Installation & Training w/ Onsite Upgrade Option
Print Method: UV
# of Nozzles / # of Heads: (180 x 6 rows)/3 Epson heads
Operating System: Windows 10 or Above
Ink Type: UV DTF (American Print and Supply)
Power Requirements: 15 Amp 110 Volt [Printer]
Print Modes: 720/540/360 dpi 12 modes +
Operating Temperature: 68°F-75°F
Channels Color: 1C1M1Y1K1LC1LM + 6V + 6W
Operating Humidity Range: 45% -75%
Maximum Print Width: 16.4 inches
Printer Size: 42.5” x 35.5” x 47.5”
Dusting System: Not Applicable
Warranty: 6 Months + Extendable
