Large, multi-use fume extraction unit
Have one to sell?
ConditionNew
New

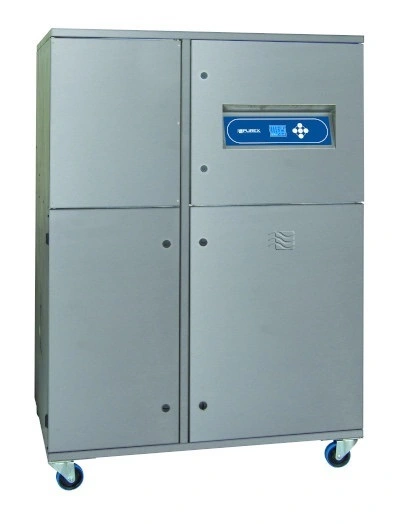

The 5000i 3 Phase offers a choice of pre-filters depending on if your workspace allows side inlet or rear inlet. This machine is able to extract from up to 36 separate Purex arm kits simultaneously, making it an ideal choice for large scale Hand Soldering processes. Its large air flow also allows it be used for Wave Soldering applications where a steady and constant airflow is needed. In addition, it can be used on large scale Laser Engraving and Coding processes.
FEATURES
• Clear & informative graphic display
• Highest grade HEPA and carbon technology
• Automatic electronic flow control - maintains a constant extraction rate even as the filter blocks
• Gas and particle sensors to warn the operator
• Adjustable airflow
3 phase supply
Voltage 220v 400v
Side Entry Volume Part No. 0LX5551D 0LX5550D
Vacuum Part No. 044251D 044250D
Rear Entry Volume Part No. Not Applicable 0LX5549D
Vacuum Part No. 044265D 044261D
Wattage 7.5kW
Frequency 50Hz / 60Hz
Cabinet Height 1804mm
Cabinet Width 1250mm
Cabinet Depth 892mm
Cabinet Weight 400kg
Airflow 5000m3/h
Sound Levels <60dBa
